Designed for Tier III Standards
High Levels of Standard
The Green Rack micro data center is engineered to align with Tier III standards, providing high availability, redundancy, and continuous maintenance capabilities. Each component is designed to ensure reliable operation of your critical infrastructure
Features:
Redundant Electrical Infrastructure:
Green Rack features a three-phase power supply and a 6KVA UPS system (model BYPASSPT610KVA), with a bypass to enable maintenance without interruptions. Backup generators with a 30A ATS provide continuous power, with two independent sources for redundancy.
Cooling and Thermal Efficiency:
An air conditioning system (model CJA0003) with a 3.5 KW capacity ensures optimal equipment performance. To meet Tier III design standards, the system is built with full redundancy, featuring two independent cooling units for continuous operation even during maintenance.
Connectivity and Security:
With fiber optic and copper connections, Green Rack ensures reliable data flow. The rack offers IP65 protection, centralized access control (model OUTDOOR GR100), a fire detection and suppression system using Novec1230 gas, and integrated security cameras for comprehensive protection.

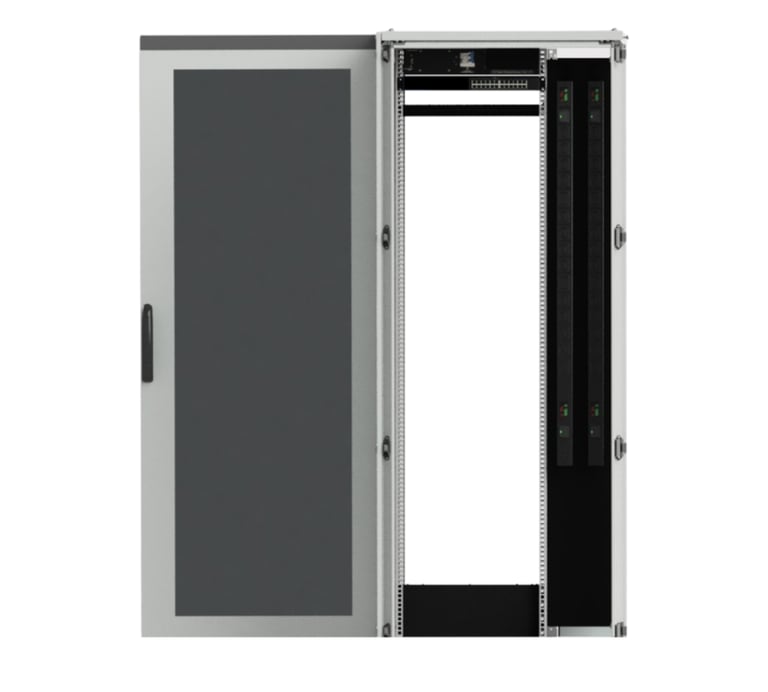

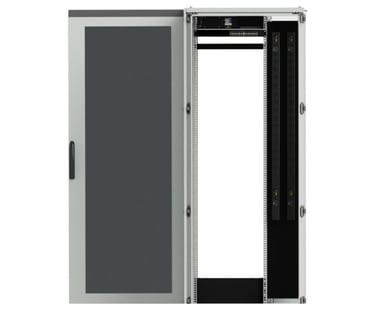

Optimized Space and Modular Design:
The 42U rack (28U available) is designed for flexibility to adapt to various needs. With dimensions of 191 cm in height and 92 cm in width, the modular design makes maintenance straightforward and supports expansion as needed.
Comprehensive Monitoring and Management:
Environmental monitoring systems track temperature, humidity, and security conditions. Visual and audible alarms alert for critical events, while front and rear cameras provide continuous surveillance. Management is accessible via a web interface or NOC application, supporting real-time monitoring.
Why Green Rack Aligns with Tier III Standard?
Green Rack is designed with redundancy in power and cooling, along with robust security and continuous monitoring, to meet the principles of Tier III performance. While not officially certified, its architecture supports continuous operation, even during maintenance, achieving high availability.
